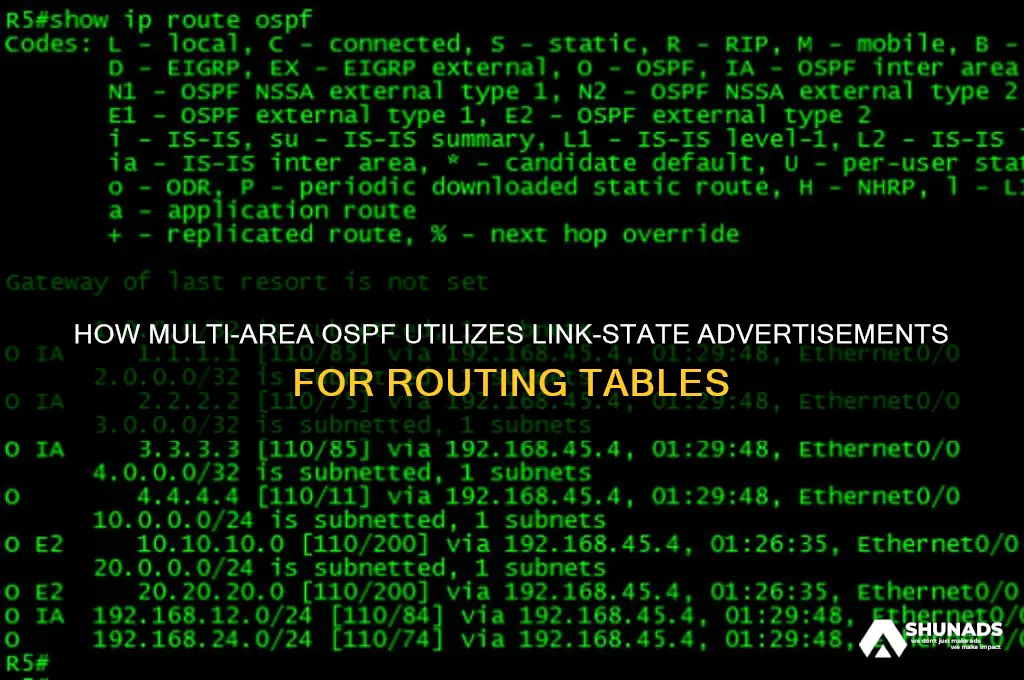

Multi-Area OSPF (Open Shortest Path First) is a hierarchical routing protocol designed to optimize network scalability and efficiency in large environments. It divides networks into areas, with each area maintaining its own link-state database to reduce the amount of routing information exchanged. Central to this process is the use of Link-State Advertisements (LSAs), which are messages used by OSPF routers to share information about network topology, link states, and metrics. These LSAs are flooded throughout the network, ensuring that all routers within an area have a synchronized and accurate view of the network. In multi-area OSPF, LSAs are also used to summarize routing information between areas, minimizing the amount of data that needs to be propagated across area boundaries. This mechanism allows OSPF to maintain detailed and up-to-date routing tables while efficiently managing resources in complex, multi-area networks. Thus, LSAs are indeed fundamental to how multi-area OSPF operates and maintains its routing tables.
| Characteristics | Values |
|---|---|
| Routing Protocol Type | Link-State Routing Protocol (LSRP) |
| Use of Link-State Advertisements (LSAs) | Yes, Multi-Area OSPF uses LSAs to maintain routing tables. |
| Purpose of LSAs | To share network topology information between routers within an area. |
| LSA Types in Multi-Area OSPF | Type 1 (Router LSA), Type 2 (Network LSA), Type 3 (Summary LSA), Type 4 (ASBR Summary LSA), Type 5 (External LSA). |
| Area Types | Backbone Area (Area 0), Non-Backbone Areas, Stub Areas, Totally Stubby Areas, NSSA (Not-So-Stubby Area). |
| Routing Table Maintenance | Each router builds a Link-State Database (LSDB) and computes the shortest path tree using the Dijkstra algorithm. |
| Inter-Area Routing | Summary LSAs (Type 3) are used to advertise networks between areas. |
| External Routing | ASBRs use Type 5 LSAs to advertise external routes into the OSPF domain. |
| Scalability | Multi-Area OSPF reduces LSDB size by summarizing routes between areas, improving scalability. |
| Convergence Speed | Faster convergence due to event-driven updates and incremental SPF calculations. |
| Hierarchical Design | Divides the network into areas to reduce routing table size and processing overhead. |
Explore related products
What You'll Learn
- LSAs in Multi-Area OSPF: Understanding the role of LSAs in multi-area OSPF networks
- LSA Types Overview: Exploring different LSA types used in multi-area OSPF routing
- Routing Table Updates: How LSAs update routing tables in multi-area OSPF environments
- Area Border Routers: Role of ABRs in exchanging LSAs between OSPF areas
- LSA Flooding Mechanism: Process of LSA flooding to maintain consistent routing tables across areas
LSAs in Multi-Area OSPF: Understanding the role of LSAs in multi-area OSPF networks
Multi-area OSPF networks rely heavily on Link-State Advertisements (LSAs) to maintain accurate and scalable routing tables. Unlike single-area OSPF, where all routers share a common link-state database, multi-area OSPF divides the network into areas, each with its own database. LSAs serve as the mechanism for exchanging routing information both within and between these areas, ensuring that routers have the necessary data to compute the shortest path to destinations.
Consider the types of LSAs involved in this process. Type 1 LSAs, or Router LSAs, describe the links connected to a router within its own area. These are confined to the local area and do not propagate beyond it. Type 3 LSAs, or Network Summary LSAs, are generated by Area Border Routers (ABRs) to advertise inter-area routes to other areas. Type 4 LSAs are used to advertise the location of Autonomous System Boundary Routers (ASBRs), which connect OSPF to other routing domains. Finally, Type 5 LSAs are employed by ASBRs to advertise external routes into the OSPF domain. Each LSA type plays a distinct role in maintaining the integrity and efficiency of routing tables across multiple areas.
The process of LSA exchange in multi-area OSPF is hierarchical and deliberate. Within an area, routers flood Type 1 and Type 2 LSAs (Network LSAs) to build a detailed map of local topology. ABRs then summarize this information into Type 3 LSAs, reducing the amount of routing data that needs to be propagated to other areas. This summarization is critical for scalability, as it minimizes the size of the link-state database in each area. For example, if Area 1 has 100 subnets, an ABR can summarize these into a single Type 3 LSA for Area 2, rather than flooding 100 individual LSAs.
However, the reliance on LSAs introduces challenges, particularly in large networks. LSA throttling and summarization are essential techniques to manage the volume of LSAs. Without proper summarization, routers in one area could be overwhelmed by detailed topology information from another area, leading to increased memory and CPU usage. Additionally, LSA aging ensures that outdated information is removed from the database, preventing routing loops or black holes. Network administrators must carefully configure these mechanisms to balance granularity and scalability.
In practice, understanding LSAs in multi-area OSPF requires a methodical approach. Start by identifying the role of each router—whether it’s an internal router, ABR, or ASBR—as this determines the types of LSAs it generates. Use tools like `show ip ospf database` on Cisco devices to inspect LSAs and verify their contents. For instance, ensure that Type 3 LSAs accurately summarize inter-area routes and that Type 5 LSAs correctly advertise external routes. Regularly audit LSA propagation to detect issues like flapping links or misconfigured summarization, which can degrade network performance. By mastering LSAs, administrators can optimize multi-area OSPF networks for reliability and efficiency.
Unlocking Targeted Advertising: The Power of Demographic Data Insights
You may want to see also
Explore related products
LSA Types Overview: Exploring different LSA types used in multi-area OSPF routing
Multi-area OSPF relies heavily on Link-State Advertisements (LSAs) to maintain accurate and efficient routing tables across its hierarchical structure. LSAs are the backbone of OSPF's link-state routing protocol, providing a detailed map of the network topology. Each LSA type serves a specific purpose, ensuring that routers within an OSPF domain have the necessary information to compute the shortest path to any destination. Understanding these LSA types is crucial for network administrators to troubleshoot, optimize, and scale OSPF networks effectively.
Type 1 LSAs (Router LSAs): The Foundation of Intra-Area Routing
Type 1 LSAs are generated by every router within an OSPF area and describe the router's directly connected links, including their state, cost, and type. These LSAs are confined to the area in which they are originated, ensuring that routers within the same area have a complete and accurate view of the local topology. For example, if Router A has three interfaces in Area 1, it will flood a Type 1 LSA listing these interfaces to all other routers in Area 1. This localized information is essential for intra-area routing, allowing routers to compute paths without relying on external data.
Type 3 LSAs (Network LSAs): Summarizing Inter-Area Routes
When routes need to be advertised between areas, Type 3 LSAs come into play. These LSAs are generated by Area Border Routers (ABRs) and summarize routes from one area to another. For instance, if Area 1 needs to know about a subnet in Area 2, the ABR will create a Type 3 LSA for that subnet and flood it into Area 1. This summarization reduces the amount of routing information exchanged between areas, minimizing overhead and improving scalability. However, it’s critical to configure summarization carefully to avoid routing loops or black holes.
Type 4 LSAs (ASBR Summary LSAs): Locating AS Boundary Routers
Type 4 LSAs are used to advertise the location of Autonomous System Boundary Routers (ASBRs) within an OSPF domain. ASBRs are routers that connect OSPF to other routing domains, such as BGP or EIGRP. When an ABR learns about an ASBR from another area, it generates a Type 4 LSA to inform routers in its own area how to reach the ASBR. This ensures that traffic destined for external networks can be properly forwarded. For example, if Area 1 needs to send traffic to the internet via an ASBR in Area 0, a Type 4 LSA will guide the traffic to the correct ABR.
Type 5 LSAs (AS External LSAs): Advertising External Routes
Type 5 LSAs are used by ASBRs to advertise external routes into the OSPF domain. Unlike Type 3 and Type 4 LSAs, which are area-specific, Type 5 LSAs are flooded throughout the entire OSPF network, ensuring all routers are aware of external destinations. For instance, if an ASBR learns about a BGP route, it will generate a Type 5 LSA to advertise this route to all OSPF routers. While Type 5 LSAs provide comprehensive external routing information, they can increase the size of the link-state database, so they should be used judiciously.
Practical Tips for Managing LSAs
To optimize multi-area OSPF performance, administrators should focus on proper LSA management. Use summarization with Type 3 LSAs to reduce inter-area traffic, but ensure summarization boundaries align with IP addressing schemes. Limit the use of Type 5 LSAs by redistributing external routes only where necessary. Regularly audit the link-state database using commands like `show ip ospf database` to identify unnecessary LSAs or misconfigurations. Finally, consider deploying OSPFv3 for IPv6 networks, as it simplifies LSA handling by eliminating Type 4 LSAs and using a single LSA format for all functions.
By mastering the nuances of LSA types, network administrators can ensure that multi-area OSPF networks remain robust, scalable, and efficient, even in complex, large-scale environments.
Did Early Advertisements Embrace Color Photography? Uncovering the First Use
You may want to see also
Explore related products
Routing Table Updates: How LSAs update routing tables in multi-area OSPF environments
In multi-area OSPF environments, Link-State Advertisements (LSAs) are the backbone of routing table updates, ensuring that routers maintain an accurate and synchronized view of the network topology. LSAs are generated by routers to describe their local link states, including interfaces, neighboring routers, and associated metrics. These advertisements are then flooded throughout the OSPF area, allowing all routers within the area to construct a consistent link-state database (LSDB). When a router receives an LSA, it processes the information to compute the shortest path to each destination using the Dijkstra algorithm, updating its routing table accordingly. This process ensures that routing decisions are based on the most current and comprehensive network information available.
Consider the role of LSAs in inter-area routing, where Type 3 LSAs (Summary LSAs) play a critical role. These LSAs are generated by Area Border Routers (ABRs) to advertise networks from one area to another, summarizing routes to reduce LSDB size and improve scalability. For example, if Area 1 contains networks 10.1.0.0/16 and 10.2.0.0/16, an ABR will generate a Type 3 LSA advertising the summarized route 10.0.0.0/8 to Area 0 (the backbone). Routers in other areas receive this LSA, update their LSDBs, and adjust their routing tables to include the summarized route. This ensures that traffic destined for Area 1 is forwarded efficiently, even if routers outside the area lack detailed knowledge of its internal topology.
However, not all LSAs are created equal, and their handling varies based on type and area boundaries. For instance, Type 1 and Type 2 LSAs (Router LSAs and Network LSAs) are confined to their originating area, ensuring that detailed link-state information does not overwhelm the backbone or other areas. In contrast, Type 4 LSASAs (ASBR Summary LSAs) are used to advertise the location of Autonomous System Boundary Routers (ASBRs) throughout the OSPF domain, enabling external routing information to be distributed. Understanding these distinctions is crucial for network administrators, as misconfigurations in LSA handling can lead to routing loops, black holes, or suboptimal paths.
To illustrate, imagine a scenario where an ABR fails to generate a Type 3 LSA for a newly added network in its connected area. Routers in other areas would lack knowledge of this network, rendering it unreachable. To prevent such issues, administrators should regularly verify LSA consistency using tools like `show ip ospf database` on Cisco devices or equivalent commands on other platforms. Additionally, enabling OSPF authentication and monitoring LSA refresh times (typically every 30 minutes) can enhance security and ensure timely updates. By proactively managing LSAs, network operators can maintain robust and efficient routing in multi-area OSPF environments.
In conclusion, LSAs are the lifeblood of routing table updates in multi-area OSPF, enabling routers to adapt dynamically to network changes. From intra-area routing with Type 1 and Type 2 LSAs to inter-area routing with Type 3 and Type 4 LSAs, each LSA type serves a specific purpose in maintaining an accurate LSDB. By understanding their functions, administrators can troubleshoot issues, optimize performance, and ensure seamless connectivity across complex OSPF domains. Mastery of LSA behavior is not just a technical skill—it’s a strategic advantage in managing modern networks.
Chevy Monte Carlo's Iconic Animal Mascot: Unveiling the Advertising Mystery
You may want to see also
Explore related products
Area Border Routers: Role of ABRs in exchanging LSAs between OSPF areas
In multi-area OSPF deployments, Area Border Routers (ABRs) serve as critical intermediaries that facilitate the exchange of Link-State Advertisements (LSAs) between different OSPF areas. Their primary role is to ensure that routing information is propagated efficiently while maintaining scalability and reducing network overhead. ABRs connect multiple areas and are responsible for summarizing and injecting inter-area routes, which are essential for maintaining accurate routing tables across the entire OSPF domain.
Consider the process step-by-step: First, ABRs generate and flood Type 3 LSAs (Summary LSAs) into other areas to advertise inter-area routes. These LSAs contain summarized information about networks located in different areas, reducing the amount of routing data that needs to be processed by routers within an area. For example, if Area 1 has a network 10.0.0.0/24, an ABR will advertise this network to Area 0 (the backbone area) using a Type 3 LSA, ensuring routers in Area 0 know how to reach it without needing detailed link-state information.
However, ABRs must balance summarization with precision. Over-summarization can lead to suboptimal routing, while under-summarization defeats the purpose of reducing LSA overhead. Network administrators should carefully plan summarization boundaries, ensuring they align with IP addressing schemes and network topology. For instance, summarizing /24 subnets into a /16 range works well if all subnets within that range are contiguous and follow a logical grouping.
One cautionary note: ABRs must not propagate Type 5 LSAs (External LSAs) directly between non-backbone areas. Instead, these LSAs must always be injected into the backbone area first, from which they are then redistributed to other areas via Type 3 or Type 4 LSAs. This ensures consistency and prevents routing loops. For example, if an external route is learned via BGP, the ABR will advertise it as a Type 5 LSA into the backbone area, which then propagates the route to other areas as needed.
In practical terms, configuring ABRs requires attention to detail. Use the `area range` command to summarize routes and the `passive-interface` command to prevent unnecessary LSA flooding on ABR interfaces. Regularly verify ABR functionality using commands like `show ip ospf database` to inspect LSAs and `show ip route ospf` to confirm proper routing table entries. By mastering ABR operations, network engineers can ensure multi-area OSPF networks remain efficient, scalable, and reliable.
Cartoon Hound Dog Ad: Uncovering the Iconic Commercial's Origins
You may want to see also
Explore related products
LSA Flooding Mechanism: Process of LSA flooding to maintain consistent routing tables across areas
In multi-area OSPF networks, maintaining consistent routing tables across areas is critical for efficient and reliable data transmission. The Link-State Advertisement (LSA) flooding mechanism is the backbone of this process, ensuring that all routers within an area have a synchronized view of the network topology. This mechanism operates by disseminating LSAs—packets containing detailed information about network links—throughout the area, allowing routers to compute the shortest path to any destination.
The flooding process begins when a router detects a change in its local link state, such as a link failure or metric update. It then generates an LSA reflecting this change and forwards it to all adjacent routers. These routers, upon receiving the LSA, update their link-state databases (LSDBs) and recompute their routing tables using the Dijkstra algorithm. Crucially, each router also propagates the LSA to its neighbors, ensuring the update spreads throughout the area. This chain reaction continues until every router in the area has received and processed the LSA, maintaining consistency in routing information.
However, LSA flooding is not without challenges. Uncontrolled flooding can lead to excessive network traffic and resource consumption, particularly in large or densely connected areas. OSPF mitigates this through several mechanisms. First, LSAs include a sequence number and age field, ensuring routers discard outdated or duplicate advertisements. Second, routers use multicast addressing (224.0.0.5 and 224.0.0.6) to efficiently distribute LSAs to all OSPF-enabled devices without overwhelming the network. Additionally, area border routers (ABRs) summarize routing information between areas, reducing the number of LSAs that need to be flooded across area boundaries.
To optimize LSA flooding, network administrators should carefully design area boundaries to minimize the scope of flooding. For instance, dividing a large network into smaller areas limits the impact of topology changes, as LSAs are confined to their respective areas. Implementing OSPF throttling, which controls the rate at which LSAs are processed, can also prevent router overload during periods of rapid change. Regularly auditing LSDBs for inconsistencies or unnecessary LSAs ensures the flooding mechanism operates efficiently.
In practice, understanding the LSA flooding mechanism is essential for troubleshooting routing inconsistencies in multi-area OSPF networks. For example, if routers within an area have mismatched routing tables, administrators should verify that LSAs are being correctly flooded and processed. Tools like `show ip ospf database` on Cisco devices can provide insights into the LSDB, helping identify missing or stale LSAs. By mastering this process, network engineers can ensure robust and scalable routing in complex OSPF environments.
Adventure Appeal in Advertising: Captivating Consumers Through Thrilling Experiences
You may want to see also
Frequently asked questions
Yes, multi-area OSPF uses link-state advertisements (LSAs) to maintain routing tables. LSAs are exchanged between routers to share information about network topology, which is then used to build and update the routing tables.
In multi-area OSPF, LSAs are flooded within each area to provide detailed information about the network’s links and states. Area Border Routers (ABRs) summarize this information and exchange it between areas, ensuring that each router has a complete and accurate view of the network for proper routing.
Yes, link-state advertisements are the primary mechanism for routing table updates in multi-area OSPF. They provide a scalable and efficient way to distribute network topology information, allowing routers to compute the shortest path to destinations using the Dijkstra algorithm.
